Belter Machinery Co., Inc.

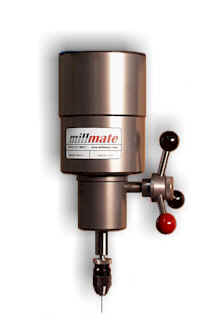

Microdrilling Attachment
Model No. MDA-01
$1,595.00

bulletUltra-Sensitive Drill Press
bulletR-8 Spindle Attachment
bullet5:1 Speed Multiplier
bulletDrilling Capacity .004" to .125" diameter
bullet350-20,000 rpm Speed Range
bullet1/8" Precision Albrecht Chuck


Easy - Take the hassle out of small hole drilling with Millmate's Microdrilling Attachment.  Millmate's unique in-line spindle design makes set-up a snap by easily attaching to any standard R-8 spindle.  No special draw bar required.  Just use a deep well 3/4" socket.  Millmate turns your conventional mill into a superior small hole drill press.

Accurate - No more guessing location as with off-set attachments.  In-line spindle feature maintains accuracy.  Confidence in position is assured as pre-established coordinates are maintained.

Sensitive - Quill counter-balanced for most sensitive feel.  Extreme sensitivity achieved by eliminating common sources of friction and drag, and reducing moving mass to a bare minimum.  Ultra-smooth feel means better control, resulting in less drill breakage and increased productivity.

Quality - Designed and manufactured to our high standards.  Every Millmate comes with an 1/8" precision Albrecht chuck.  A 5:1 speed multiplier gives operators proper speed range.  No maintenance required.

Useful - Whether you have one hole to drill or thousands, this tool was designed to be operator friendly and practical.  Change to a Millmate for small hole drilling applications as you would a tap head for tapping operations.

Affordable - Improve productivity and increase profits.  Priced at $1,595.00.  Includes a durable polyethylene storage case.

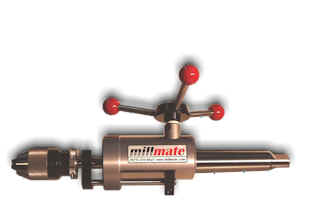

Tailstock Drill Press
Model No. LM41
(shown with optional keyless chuck)
Standard Chuck $380.00
Keyless Chuck $520.00



bulletGreat for power tapping small threads
bulletOne-handed peck drilling
bulletRepeat to-depth drilling
bulletSensitive for small holes
bullet3/8" Chuck
bullet3" Quill Travel


Easy
-  Simplify common tailstock operations with Millmate's tailstock drill press for lathes.  Operates simply as a drill press on an otherwise cumbersome tailstock.  Models available in MT3 or MT4 shank, with standard key chuck.  Optional keyless chuck available.

Useful - Use it for one-handed peck drilling and it's great for power tapping small threads. Repeat "to-depth" drilling with easy depth stop setting. Features 3/8" chuck capacity with 3" quill travel.

Sensitive - Quill sensitivity for small hole drilling.


Tailstock Drill Press Specifications
Overall Weight...............................................................................................6 lbs.
Chuck Capacity................................................................................................3/8"
Quill Travel......................................................................................................... 3"
Model LM30.....................................................MT3  Shank w/standard key chuck
Model LM40.....................................................MT4  Shank w/standard key chuck
Model LM31.................................................MT3 Shank w/Albrecht keyless chuck
Model LM41.................................................MT4 Shank w/Albrecht keyless chuck
                                                   Features
bulletGreat for power tapping small threads
bulletOne-handed peck drilling
bulletRepeat to-depth drilling
bulletSensitive for small holes
bullet3/8" Chuck
bullet3" Quill travel
